| Brand Name: | SMX |
| Model Number: | MX-ST4800U |
| MOQ: | 1pc |
| Price: | 1480usd/pc |
| Packaging Details: | Carton Package |
| Payment Terms: | T/T |

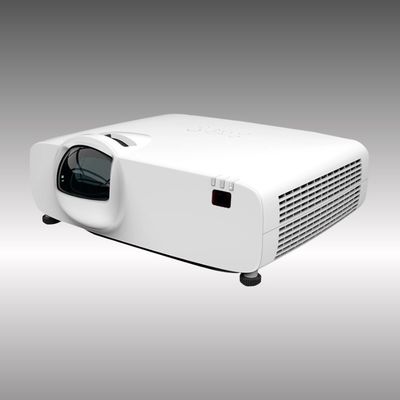

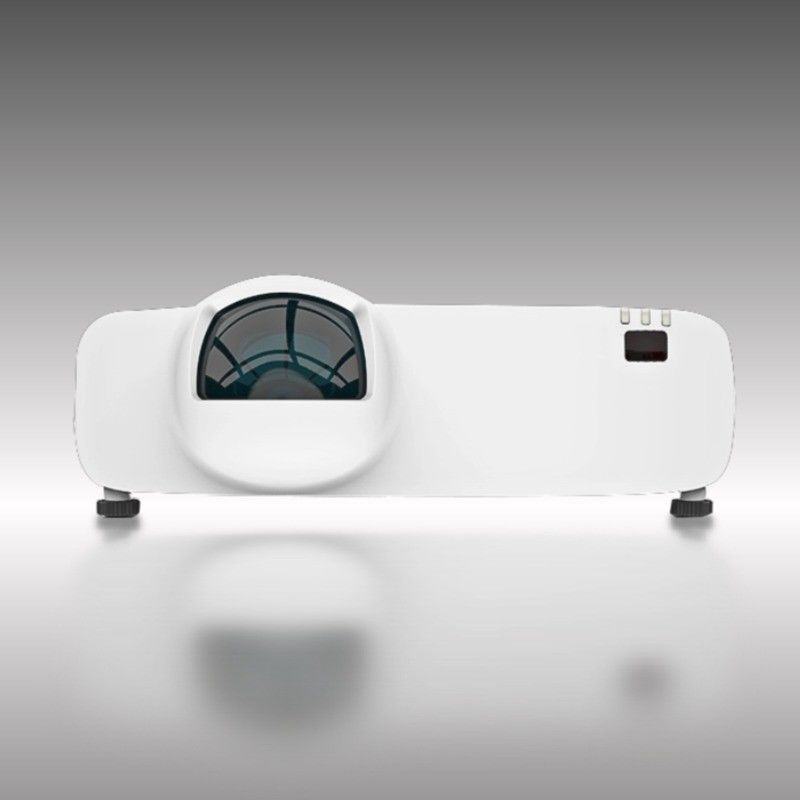

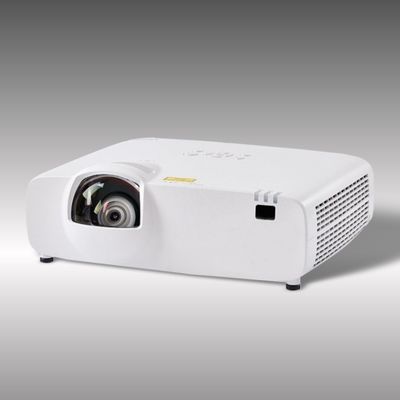

4800 Lumen Short Throw Laser Projector
The SMX MX-ST4800U is a 3LCD Laser Short Throw Projector with 4,800 Lume, which is ideal for small conference rooms, classrooms and home theaters due to the advantages in space utilization, installation flexibility, image quality, etc. It can provide an excellent viewing experience in a limited space and are suitable for a variety of application scenarios.
Main Features:
• 4800 Lumen
• High contrast 5,000,000 : 1
• Throw Ratio 0.44 :1
• 30,000 Hours Lifespan
• 4K Signal Support
• 360° Projection
• Multiple Ports
Application Area:
Specification
| Model No. | MX-ST4800U | |
| Brightness (Ansi Lumen) |
4800 | |
| Resolution | WUXGA | |
| Key parts | ||
| Panel | SONY 0.64" | |
| Lens Maker | RICOH Lens | |
| Throw Ratio | 0.44:1 | |
| Light source | NICHIA LASER | |
| Overall Spec | ||
| Light source Life time | FullNirmal/Normal mode | 20000hrs |
| ECO1 mode | 30000hrs(TBD) | |
| ECO2 mode | TBD | |
| Projection Lens | Lens Vendor | RICOH |
| F | 1.6 | |
| f | 6.39mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 0.44:1 | |
| Zoom Ratio | N/A | |
| Screen size | 55-130 inch | |
| Lens Shift | N/A | |
| CR | Dynamic Contrast Ratio (FOFO) |
5000,000:1 |
| Native Contrast Ratio (FOFO) |
350:1(Min) | |
| Noise | Noise(dB) | TGT: 37dB(Normal) 27dB(ECO1) |
| Uniformity | Uniformity(Actual Min) -ISO21118 |
80% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |

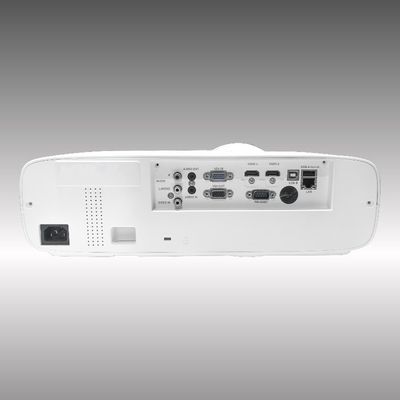

| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI | *2 | |
| Video | *1 | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Audio in (RCA×2) <Audio L/R> | *1 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| YCbCr/Component | N/A | |
| S-Video | N/A | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 | |
| LAN | *1 | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 7300h(TBD) | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) |
TBD | |
| Power Consumption (ECO1) (Max) |
TBD | |
| Power Consumption (ECO2) (Max) |
TBD | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 5 to 40°C |
| Operating Thumidity. | 20-80% | |
| Storage Temp. | -10 to 50°C | |
| Storage Thumidity. | 10-85% | |
| High altitude | 1700-3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V: ±15° H: ±15° Pincushion/Barrel Correction 4 corner 6 Corner Geometry correction Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-- AMX Discovery |
Yes | |
| LAN Control-- PJ Link |
Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p |
|
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto Keystone |
| Blank | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Dynamic, Standard, Cinema, Colorboard, Blackboard(Green) | |
| Cooling time | 5s | |
| Closed caption | Yes | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~19 | |
| Others | 360° projection | Yes |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) |
390*319*143; With lens protrusion |
|
| Net. Weight (KG) | 5.5Kg | |
| Packaging Box Dimensions (WxDxH mm) | 492*443*239 | |
| Gross. Weight (KG) | ~7Kg | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power cord , Remote control | |
Flexible Installation
The SMX MX-ST4800U supports 360° all-round projection, and the image can be losslessly panned through the menu, allowing users to easily adjust the position of the projected image.
Advanced Keystone Correction
The SMX MX-ST4800U has V: ±15° H: ±15° keystone correction, pincushion/barrel distortion correction,4-corner correction, 6-corner geometry correction and grid image tune. Easy adjustment ensures users get the best imaging effect on all kinds of irregular projection surfaces.
Low noise system
The SMX MX-ST4800U with the closed internal circulation design and only 27dB low noise in ECO mode, you can hear the original sound of the video and enjoy a quiet viewing environment.
20,000 Hours Ultra-long Light Life
The brightness of the laser light source will gradually decrease with the increase of usage time.
WUXGA Native Resolution
WUXGA resolution can present high-definition video images. The technology can still maintain clear and vivid details when projected on a large screen, giving users a vibrant visual experience.
Centralized control for management efficiency
The SMX MX-ST4800U projector is compatible with Crestron RoomView, PJ Link, and AMX Discovery, enabling centralized device management for better operational efficiency.
