| Brand Name: | SMX |
| Model Number: | MX-L375X |
| MOQ: | 1pc |
| Price: | 425usd/pc |
| Packaging Details: | Carton |
| Payment Terms: | T/T |

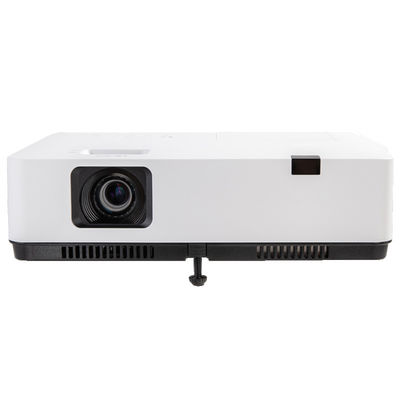

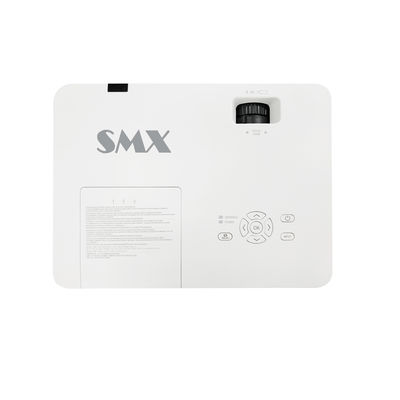

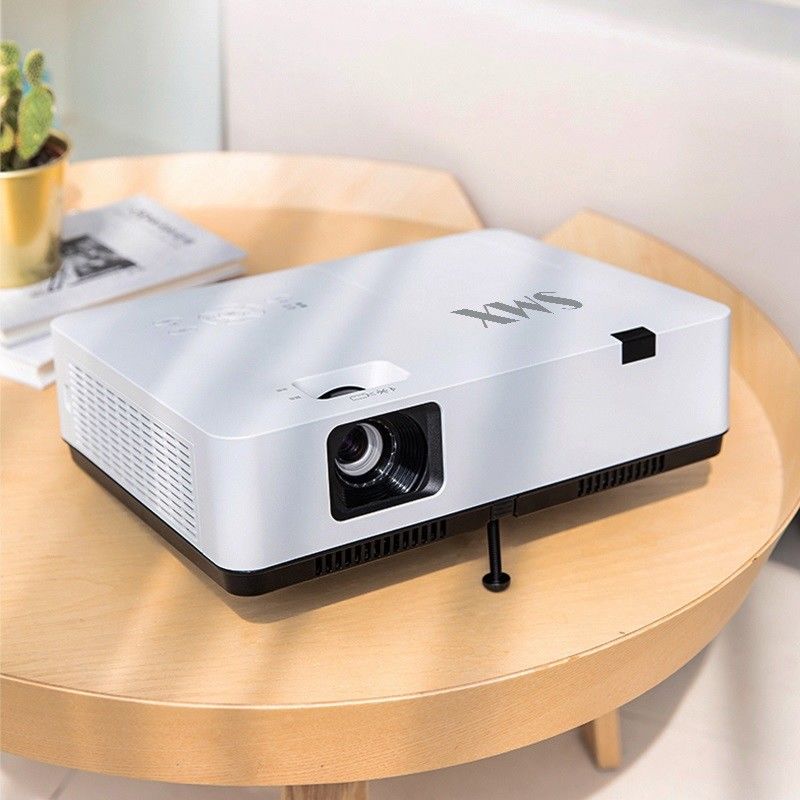

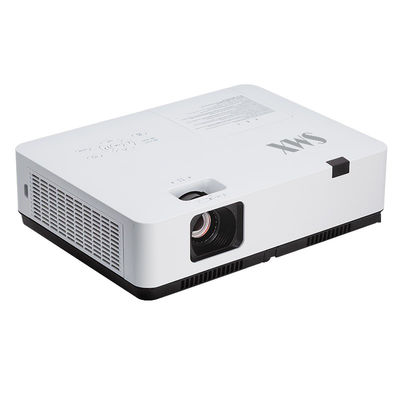

SMX MX-L375X 3700 ANSI Lumens XGA Education Projector 3LCD Projector
The bright 3,700-lumen projector is an excellent choice for classrooms or meeting rooms. With optimized brightness and contrast, it delivers exceptional image quality and impressive performance, featuring a 15,000:1 contrast ratio. Its 1.2x zoom lens and keystone correction allow for flexible positioning. Additionally, the projector is equipped with two built-in 10W speakers, providing lifelike sound.
High Color Brightness
Outstanding image quality relies on high color brightness. 3LCD projectors have 100% balanced color brightness and white brightness.
Specification
| Model# | MX-L375X | |
| Brightness | ||
| Brightness (Marketing) ( Ansi Lumens ) |
3700 | |
| Light source | Lamp:225W | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.63" |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | XGA (1024x768) | |
| Lamp | Lamp Consumption(W) | Philips: 225W Infinity(Lamp) |
| Lamp Lifetime(H) | 10000H(Normal) /20000H(ECO) | |
| Projection Lens |
Zoom/Focus | Manual |
| Throw Ratio | 70"@2.1m; 1.48~1.78:1 | |
| F | F:2.1~2.25 | |
| f | f=19.109~22.936mm | |
| Zoom Ratio | 1.2x optics | |
| Screen size | 0.888~10.937m (30"~300") | |
| CR | Contrast Ratio(Min) | 15000:1(w/IRIS) |
| Noise | Noise(dB)@1m | ECO: 30dB Normal: 37dB |
| Uniformity | Uniformity(Actual Min) -JISX6911 |
80% |
| AR | Aspect Ratio | 4:3 (Standard)/16:9(Compatible) |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI | *2 | |
| Video | *1 | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Audio in (L/R)--RCA | *1 | |
| USB-A 2.0 | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| YCbCr/Component | *1 | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 | |
| General Spec | ||
| Audio | Speaker | 1*10W |
| Keystone | Keystone Correction | V: ±30° (auto+manual) H: ±15° (manual) Pincushion/Barrel Correction Corner Keystone |
| Accessory | ||
| Standard Accessories | Power cord, VGA cable, Remote control | |
Build in 10W Speaker
Keystone Correction
Product Details
Video
Video
Video
Video
|
