| Brand Name: | SMX |
| Model Number: | MX-LK5200 |
| MOQ: | 1 |
| Price: | 2180usd/pc |
| Packaging Details: | Carton |
| Payment Terms: | T/T |

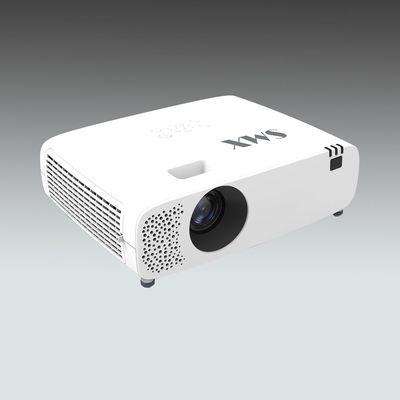

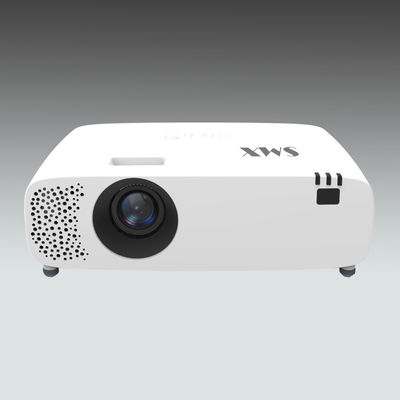

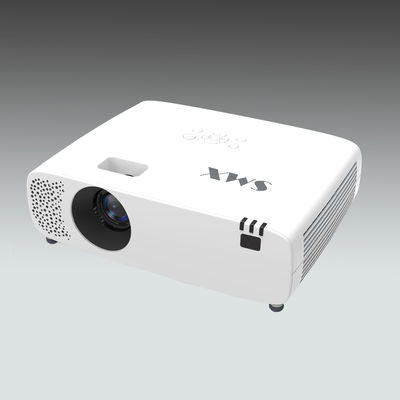

4K Projector MX-LK5200 5200 Lumens Laser Projector with 4K Enhancement for Large Screen Presentations and Events
Specification
| Main Specification | ||
| Model No. | MX-LK5200 | |
| Brightness( Lumen) | 5200 | |
| Resolution | 4K enhancement | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64” with MLA |
| Display Technology | Liquid Crystal Display | |
| Light source Lifetime | Light Source | Laser |
| Normal mode | 20000hrs | |
| ECO mode | 30000hrs | |
| Projection Lens | Lens Vendor | Zmax Lens |
| F | 1.61~1.76 | |
| f | 19.1~23mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.35~1.63:1 | |
| Zoom Ratio | 1.2x optics | |
| Screen size | 30-300 inch | |
| Lens Shift | V:0%~+55% | |
| CR | Dynamic Contrast Ratio | 5000,000:1 |
| Noise | Noise(dB) | 40dB(Normal) 30dB(ECO) |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | Native:16:9 Compatible: 4:3/16:10 |
| Terminal(I/O port) | ||
| Input | HDMI 2.0IN) | *2 |
| USB-A | *2 | |
| RJ45 | *1 | |
| HD BaseT | *1(Optional) | |
| Output | Audio port | S/PDIF*1 |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232C | *1 |
| RJ45 | *1 (Control) | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V: ±30° H:±25° 4 Corner Correction |
| LAN Control | LAN Control--PJ Link | Yes |
| Display Resolution | Computer Signal Input | up to 4K60Hz |
| SW setting | Light source brightness adjustment |
50-100% |
| Auto Ceiling | Yes | |
| HDR10 | Yes | |
| Others | 360° projection | Yes |
| Dimension&Weight | ||
| Product (WxDxH mm) |
390*294*128 | |
| Net. Weight (KG) | 5Kg | |
| Packaging (WxDxH mm) |
492*443*239 | |
| Gross. Weight (KG) | ~6.5Kg | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord Remote control | |
High-Quality Image by High bright 5000 Lumen Brightness, HDR, 5000,000:1 High Contrast
Speaker
A 16W speaker output is relatively powerful for a projector. It should provide decent sound quality and volume for small to medium-sized rooms without the need for external speakers.
Len Shift
Keystone
Laser Light Source
Normal mode for 20,000 Hrs, ECO mode for 30,000 Hrs.

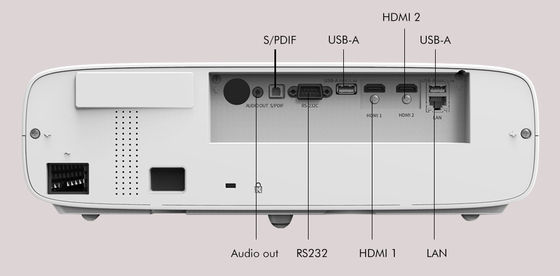

Multiple Ports
Multiple ports are beneficial for home cinema, business, and educational settings where you may need to connect various devices like laptops, document cameras, microphones, and more for presentations, video conferences, or interactive sessions
Video
Video
Video
Video
Video
Video
Video
|
