SMX MX-X20000U WUXGA 3D Mapping 3LCD Laser Projector Large Venue
The SMX MX-X20000U offers high brightness, high contrast and high color reproduction with the new 3LCD and laser light optical engine. Filter less by newly designed cooling system and sealed optical engine provides silent operation, maintenance-free fixed installation. MX-X20000U is a versatile installation projector with advance keystone correction (Pin cushion/Barrel, 4-corner, 6-corner), full 360° installation capability including portrait mode and a full suite of optional lenses. In addition, MX-X20000U offers brilliant projection image by the new 1.0” LCD panel and high efficiency laser light source.
Key Features:
Applications:
WUXGA Resolution(1920*1200)
The SMX MX-X20000U with WUXGA resolution offer significant advantages in image quality, detail, and multitasking capabilities. Choosing a WUXGA projector can enhance the visual experience and meet the demands for high-quality content.
Lens Shift
By effectively adjusting the image position, users can easily achieve the best projection effect in different environments.
High Contrast
The high contrast ratio of 3,000,000:1 greatly improves the image quality of projector, allowing it to perform better in color, detail, and overall viewing experience.
Edge Blending
This function seamlessly blends multiple projected images to display a single high-resolution image. Select this function to adjust the boundary of the projected image, set the splicing and blending of multiple projectors, so that the edge (border) of the projection screen is indistinguishable to achieve the large-screen projection effect.
High Efficiency Laser Light Source
With a laser light source of 20,000 hours , assuming 4 hours of use per day the light source can be used for around 13 years.
360° Projection
The SMX MX-X20000U supports 360° all sides projection, and the image can be losslessly panned through the menu. Users can easily adjust the position of the projected image.

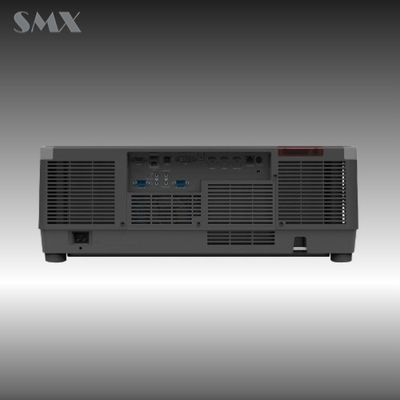

Rich Ports
* HD-SDI is optional
Specification
| Model | MX-X20000U | |
| Brightness | ||
| Brightness(Lumen) | 20,000 | |
| Overall Spec | ||
| Panel | Display Panel | 3x1.0" |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Laser Lifetime | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| Projection Lens (STD) |
Len Model | MX-EG12ZLM |
| Zoom/Focus | Motorized | |
| Throw Ratio (16:10) | 1.24-2.01 @100inch | |
| F | 1.8-2.24 | |
| f | 27.7-44.3mm | |
| Zoom Ratio | 1.62 | |
| Screen size | 60-500 inch | |
| Lens Shift V | ±65% | |
| Lens Shift H | ±25% | |
| CR | Contrast Ratio(Min) | 3,000,000:1 |
| Noise | Noise(dB) | Full:46db / Normal:44db / Eco1:43db / Eco2:42db |
| Uniformity | Uniformity | TYP:90% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal/16:6 |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1 (Display) | |
| RJ45 | *1 (Display) | |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| Audio in(mini jack,3.5mm) | *1 (VGA/DVI-D share) | |
| DMX512 | *1 | |
| Output | HDMI 1.4(OUT) | *1 |
| Audio out (mini-jack,3.5mm) | *1 | |
| Control | RS232C (Input) | *1 |
| RS232C (Output) | *1 | |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Others | 360° projection | 360° Install |
| Edge Blending | Yes | |
| Adjustable brightness | Yes | |
| Dimension&Weight | ||
| Product Size (WxHxD mm) | 599X240.2X493.8mm (not including lens) | |
| Net. Weight (KG) | 28.9Kg (not including lens) | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord (3m, Black), Remote control | |
The SMX MX-X20000U
Video
Video
Video
Video
|
