| Brand Name: | SMX |
| Model Number: | MX-STD5500U |
| MOQ: | 1pc |
| Price: | 1260usd/pc |
| Packaging Details: | Carton |
| Payment Terms: | T/T |

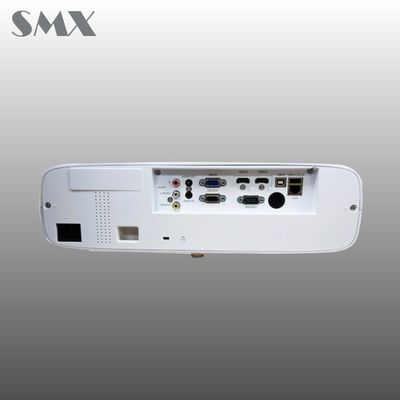

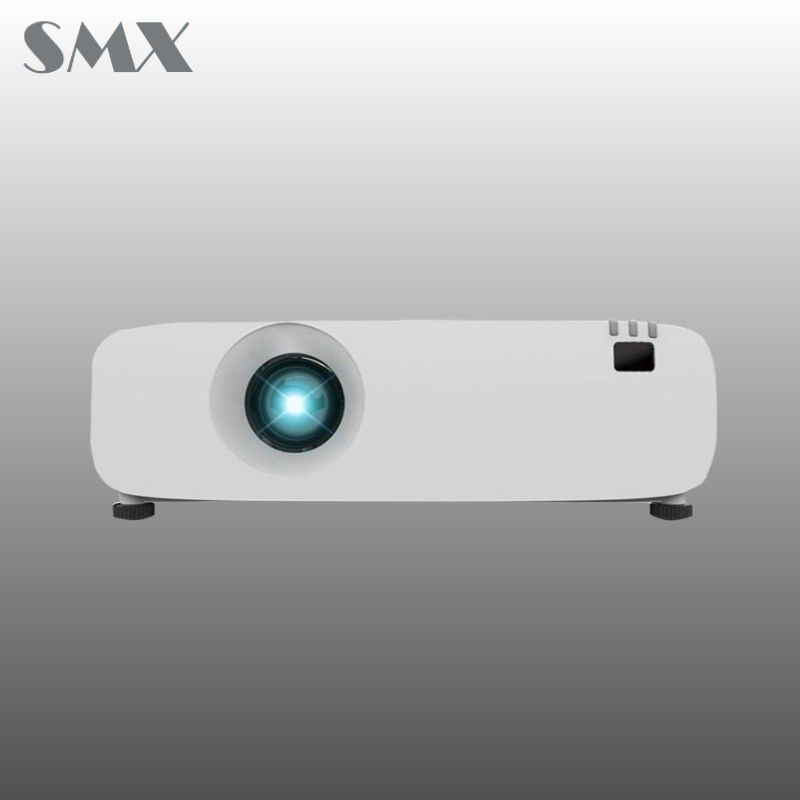

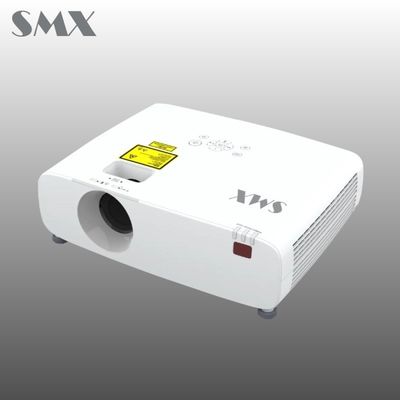

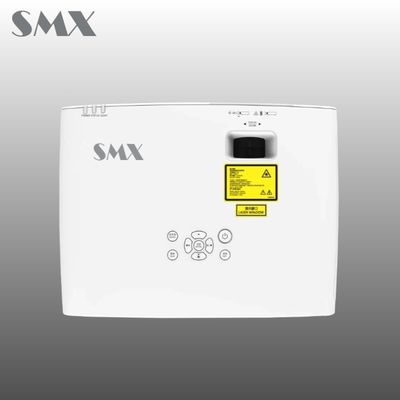

SMX Standard Throw Laser Projector 5500 Lumens High Brightness
The SMX MX-STD5500UG adopts 3LCD technology and laser light source, brightness output reaches to 5500 lumens and 5,000,000:1 contrast. Install this projector indoors in large space to still keep the screen full of rich color performance and vibrant image. Designed for ease of use, it features flexible aspect ratios, an image size up to 300 inches, and a 20, 000-hour ultra long lifespan, virtually maintenance-free laser light source.
Key Features:
Application:
WUXGA Resolution
High Contrast
Keystone Correction
360° All-round Projection Easy installation
Laser Source Life Time
Specification
| Model No. | MX-STD5500U | |
| Brightness | ||
| Brightness (Ansi Lumen) | 5500 | |
| Resolution | WUXGA | |
| Overall Spec | ||
| Light source Lifetime |
Light Source | Laser |
| Normal mode | 20000hrs | |
| ECO1 mode | 30000hrs(TBD) | |
| Projection Lens | Lens Vendor | RICOH |
| F | 1.6~1.76 | |
| f | 19.158~23.018mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.37~1.65:1 | |
| Zoom Ratio | 1.2x optics | |
| Screen size | 30-300 inch | |
| CR | Dynamic Contrast Ratio | 5,000,000:1 |
| Noise | Noise(dB) | 37dB(Normal) 27dB(ECO1) |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | 16:10 (Standard)/4:3(Compatible) |
| Terminal(I/O port) | ||
| Input |
VGA, HDMI *2, Video, Audio in *2, USB-A, USB-B, RJ45 |
|
| Output | VGA, Audio out | |
| Control | RS232, RJ45, USB-B, LAN | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Power Consumption | Power Requirements | 100~240V@ 50/60Hz |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V: ±30° / H:±30° Pincushion / Barrel / 4 Corner / 6 Corner Geometry Correction / Grid Image Tune |
| LAN Control | LAN Control | Yes |
| SW Setting | Auto Setup | INPUT SEARCH, AUTO PC, Auto Keystone |
| Auto Ceiling | Yes | |
| 360° projection | Yes | |
| Dimension&Weight | ||
| Product (WxDxH mm) |
390*294*127 | |
| Net. Weight (KG) | 5 | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord Remote control | |
Video
Video
Video
Video
Video
Video
Video
|
