| Brand Name: | SMX |
| Model Number: | MX-WPL500U |
| MOQ: | 1pc |
| Price: | 1980usd/pc |
| Packaging Details: | Carton |
| Payment Terms: | T/T |
SMX 5000 Lumen Ultra Short Throw Laser Projector Outstanding Home Cinema Projection
The SMX MX-WPL500U is an ultra-short throw projector with 5,000 high lumen, which is ideal for education, business and home entertainment because of their space saving, shadow reduction, excellent image quality and low maintenance requirements, providing users with flexible and diverse usage experiences.
Key Features:
Space-saving
The MX-WPL500U Ultra Short Throw Projector can project large images just a few inches away from the screen, making it ideal for small conference rooms, classrooms, bedrooms and audio-visual rooms.
High brightness and color performance
The MX-WPL500U boasts a high brightness rating of 5,000 lumen, which means it can deliver bright, clear images even in well-lit rooms. This makes it a great choice for presentations or events where you need to project in a brightly lit space.
Reduce shadow interference
Barrier-free viewing: Since the distance between the projector and the screen is very close, there will be no shadow when the users are watching, ensuring that the entire picture can be seen clearly, improving the viewing experience.
Excellent Audio-Visual Effects
The MX-WPL500U also features a range of connectivity options, including HDMI, VGA, and USB ports. And with its built-in speaker and audio output, users can ensure that presentations have great sound as well as great visuals.
Low noise system
The MX-WPL500U with the closed internal circulation design and only 27dB low noise in ECO mode, users can hear the original sound of the video and enjoy a quiet viewing environment.
LAN Control
The MX-WPL500U projector is compatible with Crestron RoomView, PJ Link, and AMX Discovery, enabling centralized device management for better operational efficiency.
Specification
|
Model No. |
MX-WPL500U | |
| Brightness | ||
| Lumen | 5000 | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.63" with MLA |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA(1920x1200) | |
| Light source Lifetime |
Normal mode | 20000hrs |
| ECO2 mode | 30000hrs | |
| Projection Lens | F | F1.7 |
| f | 2.94mm | |
| Lens Vendor | RICOH | |
| Zoom/Focus | Manual | |
| Throw Ratio | 0.235:1 | |
| Screen size | 80-120" | |
| CR | Contrast Ratio | 5000000:1 |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
| Terminal(I/O port) | ||

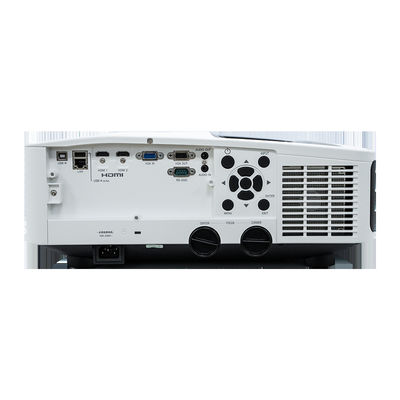

| Input | VGA*1,HDMI*2,USB-A*,USB-B*1(Display),RJ45*1(Display), Audio in*1 |
|
| Output | VGA*1 ,Audio out*1 | |
| Control | RS232*1,RJ45*1,USB-B *1 | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V: ±5° H:±5° Pincushion/Barrel Correction 6 Corner Geometry correction Grid image tune |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control-- AMX Discovery |
Yes | |
| LAN Control-- PJ Link |
Yes | |
| Display Resolution |
Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| Others | 360° projection | Yes |
| Dimension&Weight | ||
| Product Size (WxHxD mm) |
520x435x168 | |
| Net. Weight (KG) | 11 | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord, Remote control | |
Video
Video
Video
Video
Video
Video
Video
|
