| Brand Name: | SMX |
| Model Number: | MX-X12000U |
| MOQ: | 1pc |
| Price: | 8950usd/pc |
| Packaging Details: | Carton |
| Payment Terms: | T/T |

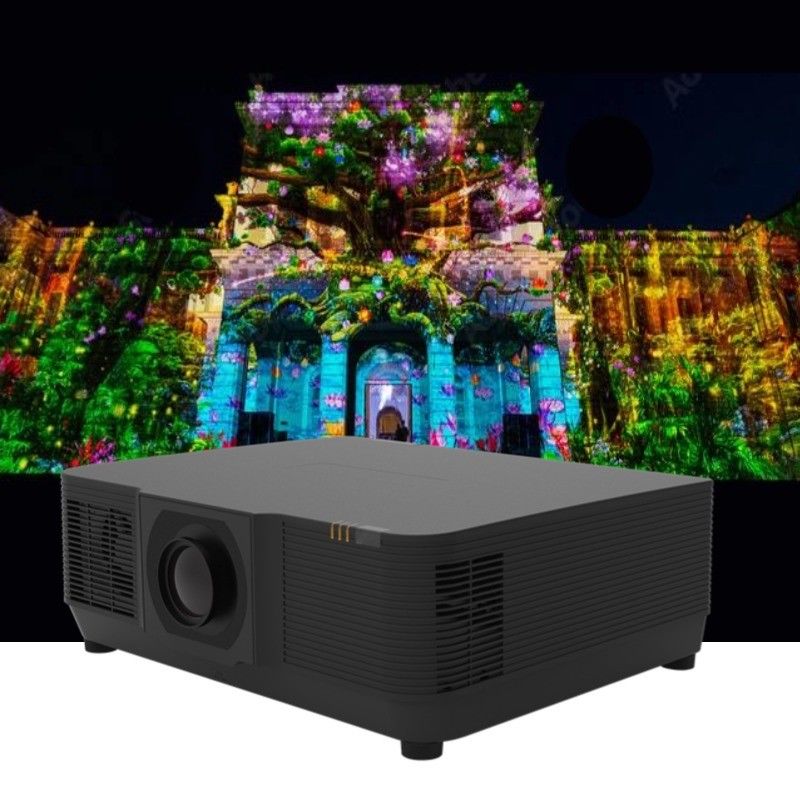

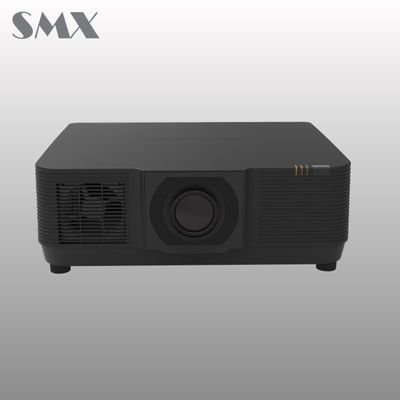

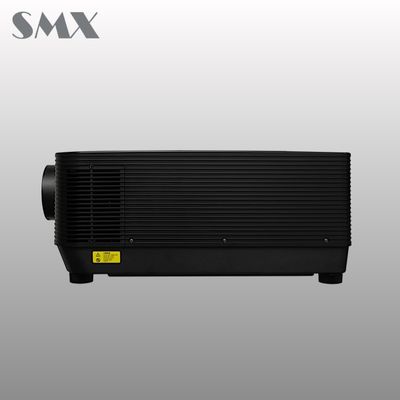

SMX MX-X12000U Laser Projector Professional 3D Mapping Large Immersive Projection
The SMX’s MX-X12000U is a laser LCD engineering projector, which adopts a new generation of LCD light source technology. The brightness can reach 12,000lm brightness and a long life of up to 30,000 hours, so that it maintains a bright display throughout its life. It avoids the radiation of light to the human body, and can completely solve the interference of shadows on the screen. It adopts liquid crystal display (LCD) technology with a color depth of 1.07 billion colors.
Key Features:
Main Application :
100,000:1 High Contrast
High-contrast projectors provide clearer, more vivid images, improve viewing experience, adapt to different lighting conditions, and achieve higher detail in professional applications.
Lens Shift
The MX-X12000U projector allows lossless panning of the image through the menu, and users can easily adjust the position of the projected image. The maximum vertical adjustment range is 50% (upward), 10% (downward), and the maximum horizontal adjustment range is ±20%.
Support 4K HD Input
The ultra-clear 4K* resolution is 4 times higher than 1080P, and 4K resolution projectors enhance the viewing experience by providing high image clarity and color performance, adapting to future content requirements, and providing higher details and accuracy in professional fields, making them ideal for home entertainment, business presentations and professional applications.
Advanced Keystone Correction
Horizontal and vertical keystone correction, along with pincushion/barrel and correction 6-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
Ultra-long Life Laser Light Source
The brightness of the light source will gradually decrease with the increase of usage time. The actual service life of the laser light source varies depending on factors such as usage mode, environmental conditions, and user habits. With a lifespan of 30,000 hours , assuming 4 hours of use per day the light source can be used for around 20 years. *20,000 hrs normal mode; 30,000 hrs ECO mode.
Flexible Installation
The projector can be rotated freely (360°) to direct the image depending on the installation requirements.
Edge Blending Function
The edge blending function of the engineering projector MX-X12000U provides users with the ability to create large-scale presentations by achieving seamless stitching and image consistency, greatly enhancing the visual effect and immersion, and is suitable for various commercial and artistic applications, especially immersive projection and 3D mapping.
Specification
| Model No. | MX-X12000U | |
| Brightness | ||
| Brightness ( Ansi Lumens ) |
12000lumen | |
| Light source | Laser | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.76" |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Light source Lifetime |
Normal mode | 20000hrs |
| ECO mode | 20000hrs | |
| Projection Lens | Len Type | Zoom Lens |
| Zoom/Focus | Manual(Standard Len) | |
| Throw Ratio(16:10) | 1.46-2.95 | |
| F#(Wide-Tele) | 1.7~2.37 | |
| f(mm) | 24.4-48.6 | |
| Zoom Ratio | 2 | |
| Weight | Approx 0.8kg | |
| Lens Shift V | +50%,-10% | |
| Lens Shift H | ±20% | |
| CR | Contrast Ratio(Min) | 100000:1 |
| Noise | Noise(dB) | Normal(90%): 35dB ECO1(75% ): 32dB ECO2(45% ): 32dB |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal |

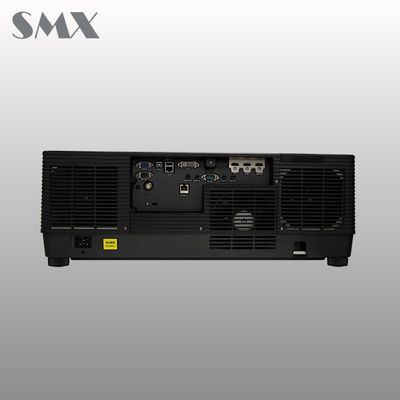

| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4(IN) | *2 | |
| USB-A | *1 (5V/1.5A) | |
| USB-B | *1 (Display) | |
| RJ45 | *1 (Display) | |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| HD-SDI(3G-SDI) | Optional | |
| Audio in (mini jack,3.5mm) |
*1 (VGA/DVI-D share) | |
| Output | VGA | *1 |
| HDMI 1.4(OUT) | *1 | |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±30° H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Others | 360° projection | 360° Omni bearing installation |
| Edge Blending | Yes | |
| Dimension&Weight | ||
| MAX Dimensions (WxHxD mm) |
600*218*503 | |
| Net. Weight (KG) | ~25kg | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord(3m,Black), Remote control | |
Video
Video
Video
Video
Video
Video
Video
Video
|
