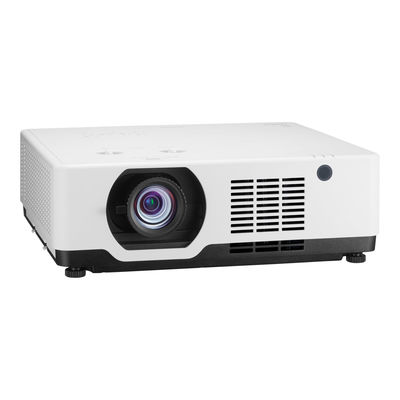

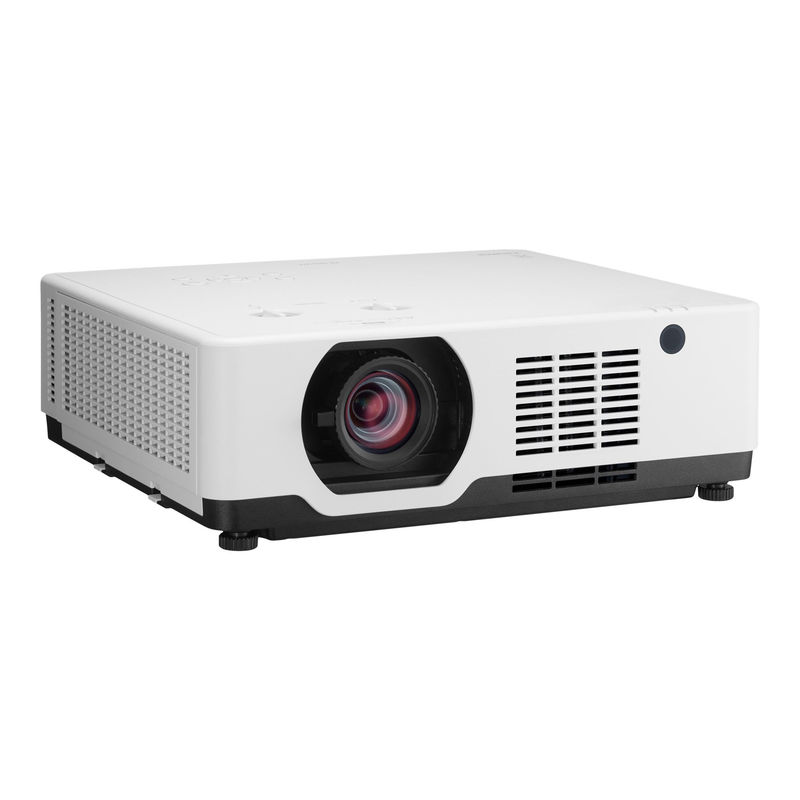

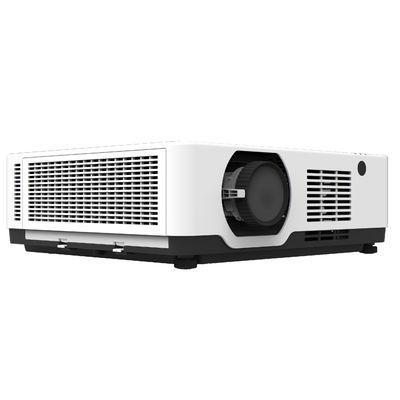

SMX 6500 Lumen Laser Projector
The SMX MX-VL650W is a high-brightness laser projector with 6500 lumens brightness, designed for immersive room, exhibitions, educational and commercial use. With a lifespan of up to 30,000 hours, it can project ultra large screens up to 300 inches in WXGA resolution. Equipped with features such as lens shift, 1.66x optical zoom, advanced keystone correction and 360° projection function, this projector provides flexible setup options. Additionally, integrated LAN control ensures seamless integration with existing equipment management networks.
Key Features:
Lens Shift
Vertical and horizontal lens shift enables flexible projector placement. Optical zoom, lens movement, installation and debugging are more convenient.
Advanced Keystone Correction
Horizontal and vertical keystone correction, pincushion/barrel distortion correction, 4 corner correction, 6 corner geometry correction and grid image tune. Easy adjustment ensures users get the best imaging effect on all kinds of irregular projection surfaces.
High-brightness
The SMX MX-VL650W adopts advanced laser light source technology, which can continuously and stably project 6500 lumens of high brightness. Clear and sharp images can be obtained even in bright environments. It is suitable for applications in immersive room, large auditoriums, conference rooms, hotels, exhibitions and other fields.
360° All-round Projection Easy installation
The SMX MX-VL650W supports 360° all-round projection, and the image can be losslessly panned through the menu. Users can easily adjust the position of the projected image.
Centralized control for management efficiency
The SMX MX-VL650W is compatible with Crestron, PJ Link, and AMX Discovery, enabling centralised device management for better operational efficiency. Through the use of LAN control, users can overcome the physical constraints of the location and space of the projector and reduce administration and management costs.
Specification
| Model | MX-VL650W | |
| Brightness Lumen | 6500 | |
| Native Resolution | WXGA (1280 x 800) | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64" with MLA |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WXGA (1280 x 800) | |
| Light source Lifetime |
Normal mode | 20000hrs |
| ECO1 mode | 30000hrs | |
| F | 1.7~2.21 | |
| f | 17.42~28.99mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.2(wide)-2.1(tele) | |
| Zoom Ratio | 1.66 | |
| Screen size | 30-300 inch | |
| Lens Shift | V:+55%～0%, H:±26% |
|
| CR | Contrast Ratio | 5000000:1 |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |

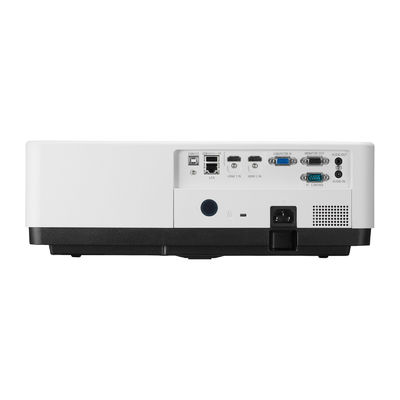

| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4B(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1 (Display) | |
| RJ45 | *1 (Display) | |
| Audio in | *1 | |
| Output | VGA | *1 |
| Audio out | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune |
| Others | 360° projection | Yes |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) |
405 (W)*358(D)*137(H) | |
| Net. Weight (KG) | ~7.7KG | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord (EU) /power cord (Ja) Remote control |
|
