| Brand Name: | SMX |
| Model Number: | MX-STD5500U |
| MOQ: | 1pc |
| Price: | 1260usd/pc |
| Packaging Details: | Carton |
| Payment Terms: | T/T |
5500 Lumens Brightness Standard Throw Laser Projector with Flexible Installation Options and Dynamic Color Reproduction
Key Features
5500 Lumens Brightness: The projector outputs a bright 5500 lumens for clear images, even in well-lit environments.
WUXGA Resolution: The projector features a high-resolution display that produces sharp, crisp images with intricate details, making it perfect for presentations, movies, and more. and more.
Flexible Installation Options: The projector is designed for versatility in installation, offering options for ceiling mounting, tabletop placement, or rear projection setups.
Dynamic Color Reproduction: Enjoy vibrant and true-to-life colors with advanced color technology that enhances the visual quality of your content.
Multiple Applications: Suitable for a diverse range of applications including classrooms, boardrooms, home theaters, entertainment venues, and digital signage displays.
Laser Light Source
The brightness of a laser light source will gradually decrease with usage over time. The actual lifespan of the laser brightness varies depending on factors such as usage patterns, environmental conditions, and user habits. When used for 4 hours per day, the projector can be used for approximately 20 years, effectively extending its lifespan.
Specification
| Model No. | MX-STD5500U | |
| Brightness | ||
| Brightness (Ansi Lumen) | 5500 | |
| Resolution | WUXGA | |
| Overall Spec | ||
| Light source Lifetime |
Light Source | Laser |
| Normal mode | 20000hrs | |
| ECO1 mode | 30000hrs(TBD) | |
| Projection Lens | Lens Vendor | RICOH |
| F | 1.6~1.76 | |
| f | 19.158~23.018mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.37~1.65:1 | |
| Zoom Ratio | 1.2x optics | |
| Screen size | 30-300 inch | |
| CR | Dynamic Contrast Ratio | 5000,000:1 |
| Noise | Noise(dB) | 37dB(Normal) 27dB(ECO1) |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | 16:10 (Standard)/4:3(Compatible) |

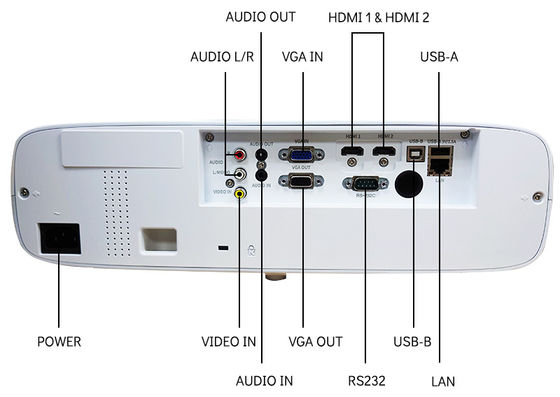

| Terminal(I/O port) | ||
| Input |
VGA, HDMI *2, Video, Audio in *2,USB-A, USB-B, RJ45 |
|
| Output | VGA, Audio out | |
| Control | RS232, RJ45, USB-B, LAN | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Power Consumption | Power Requirements | 100~240V@ 50/60Hz |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V: ±30° / H:±30° Pincushion / Barrel / 4 Corner / 6 Corner Geometry Correction / Grid Image Tune |
| LAN Control | LAN Control | Yes |
| SW Setting | Auto Setup | INPUT SEARCH, AUTO PC, Auto Keystone |
| Auto Ceiling | Yes | |
| 360° projection | Yes | |
| Dimension&Weight | ||
| Product (WxDxH mm) |
390*294*127 | |
| Net. Weight (KG) | 5Kg | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord Remote control | |
Video
Video
Video
Video
|
